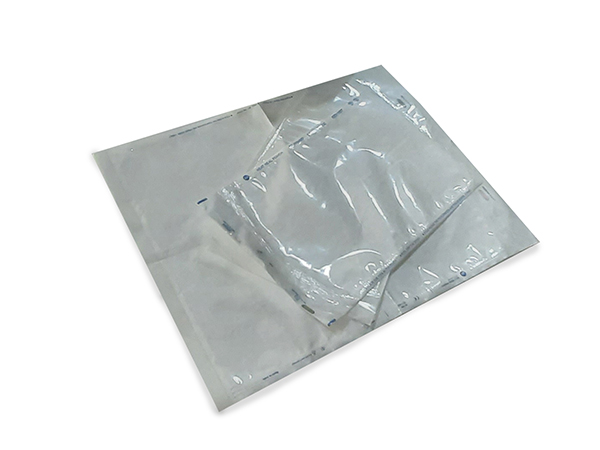

Tyvek Rolls & Pouches are prepared with certified peel able neutral and transparent plastic material coming from a special layer of polyester and polyethylene. On demand we serve pouches to expose with plasma gas, Steam and EO sterilization for heat sensitive surgical instruments. It is simple & easy to distinguish between sterilized packages from the non-sterilized ones due to sharp change indicator. Tyvek hardly absorbs any toxic gases and thus result in far below allowable limit values of residual toxic gas levels.
Features
- Excellent microbial barrier properties against germs, bacteria and moisture
- Extremely high resistance to penetration and fibre-free peeling
- Easy peel, seal and aseptic presentation
- Clear and accurate color change
- Long Shelf Life which can maintain sterility for at least five years if package integrity is not compromised
STERILIZATION METHOD | VALIDATION COLOR | PRE-STERILIZATION | POST STERILIZATION |
---|---|---|---|
Steam | Pink to Black | ||
ETO | Blue to Brown | ||
Plasma | Red/Pink to Yellow |
REEL SIZES IN MM | TYVEK HEAT SEAL | TYVEK WELD SEAL |
50 | RRT50 | RRTW50 |
55 | RRT55 | RRTW55 |
75 | RRT75 | RRTW75 |
100 | RRT100 | RRTW100 |
150 | RRT150 | RRTW150 |
200 | RRT200 | RRTW200 |
250 | RRT250 | RRTW250 |
300 | RRT300 | RRTW300 |
350 | RRT350 | RRTW350 |
400 | RRT400 | RRTW400 |
*please note the above image is only a representation for concept understanding & not an actual one
POUCH SIZES | TYVEK SELF SEAL | TYVEK WELD SEAL |
57×100 | RPTS57x100 | RPTSW57x100 |
57×125 | RPTS57x125 | RPTSW57x125 |
60×130 | RPTS60x130 | RPTSW60x130 |
50×220 | RPTS50x220 | RPTSW50x220 |
100×130 | RPTS100x130 | RPTSW100x130 |
100×150 | RPTS100x150 | RPTSW100x150 |
90×165 | RPTS90x165 | RPTSW90x165 |
70×225 | RPTS70x225 | RPTSW70x225 |
60×330 | RPTS60x330 | RPTSW60x330 |
75×280 | RPTS75x280 | RPTSW75x280 |
90×260 | RPTS90x260 | RPTSW90x260 |
150×180 | RPTS150x180 | RPTSW150x180 |
100×280 | RPTS100x280 | RPTSW100x280 |
100×330 | RPTS100x330 | RPTSW100x330 |
190×360 | RPTS190x360 | RPTSW190x360 |
135×280 | RPTS135x280 | RPTSW135x280 |
220×340 | RPTS220x340 | RPTSW220x340 |
150×275 | RPTS150x275 | RPTSW150x275 |
250×340 | RPTS250x340 | RPTSW250x340 |
250×400 | RPTS250x400 | RPTSW250x400 |
260×400 | RPTS260x400 | RPTSW260x400 |
200×280 | RPTS200x280 | RPTSW200x280 |
330×395 | RPTS330x395 | RPTSW330x395 |
330×450 | RPTS330x450 | RPTSW330x450 |
400×500 | RPTS400x500 | RPTSW400x500 |
400×630 | RPTS400x630 | RPTSW400x630 |
